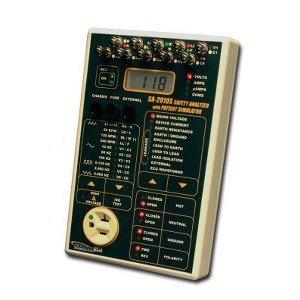

美國BC SA-2010S醫用安規測試儀是一種基于微處理器的電氣安全分析儀，內置病人模擬器。它允許在使用相同單元和引線連接的設備上執行大量測試。它提供了一個完整的電氣安全分析儀，以及具有恒定QRS持續時間的四個波形和六個機器性能測試波形的ECG模擬。有10個輸入的患者鉛測試。

美國BC SA-2010S醫用安規測試儀基本特征：

•  LED狀態指示燈
• 音頻反饋
• 觸摸控制鍵 - 無旋鈕
•  10個通用患者導線輸入
• 高沖擊塑料外殼

SA-2010S安規測試儀安全分析儀功能：
• 線路電壓測量
• 待測電流測量設備
• 接地/接地引線電阻
• 接地/接地漏電流
• 外殼/機箱漏電流
• 外部電阻
• 外部漏電流
• 源插座接線完整性監視器 •



真有效值測量
•  AAMI ES1-1993或IEC 601可選測試負載
•  90至264 VAC運行
• 全20安培額定值
• 自檢點
• 外部可更換接地保險絲
• 自動負載反轉延遲
• 患者導致引線漏電流
• 患者導通接地/漏電流
• 患者隔離漏電流
• 外部隔離漏電流
患者模擬器功能：  • 正弦：10,60和100HZ • 心電圖：30,60,120和240 BPM • 方形：0.125和2.0 HZ • 三角形：2 HZ
• 高電平輸出（1 V pp）
• 幅度精度：+/- 2％
• 頻率精度：+/- 0.5％


美國BC SA-2010S-R安規測試儀：
•  RS-232串行通信

The BC Biomedical Model SA-2010S Series is a microprocessor-based electrical safety analyzer with a built-in patient simulator. It allows for a multitude of tests to be performed on a device using the same unit and lead connections. It provides a full electrical safety analyzer, as well as ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms. There is Patient Lead testing for 10 inputs.


SA-2010S Series Basic Features:

• Led status indicators
• Audio feedback
• Touch control keys – no knobs
• 10 universal patient lead inputs
• High impact plastic case


Safety Analyzer Capabilities:

• Line voltage measurement
• Device under test current measurement
• Earth / ground lead resistance
• Earth / ground leakage current
• Enclosure / chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 90 to 264 VAC operation
• Full 20 amp rating
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth / ground leakage current
• Patient isolation leakage current
• External isolation leakage current


Patient Simulator Capabilities:

• Sine: 10, 60 AND 100 HZ
• ECG: 30, 60, 120 AND 240 BPM
• Square: 0.125 AND 2.0 HZ
• Triangle: 2 HZ
• High level output (1 V p-p)
• Amplitude accuracy: +/- 2%
• Frequency accuracy: +/- 0.5%


SA-2010S-R:
• RS-232 serial communications
