QRM QRM-MicroBar測試卡，QRM-MicroBar測試模體,Micro-CT高分辨率測試卡 技術參數：
內含兩個3mm×3mm硅質芯片，分別水平和垂直安裝，芯片上刻有條狀（溝槽）和點狀圖樣，度規格為：1μm，2μm，3μm，4μm，5μm，6μm，7μm，8μm，9μm，10μm.

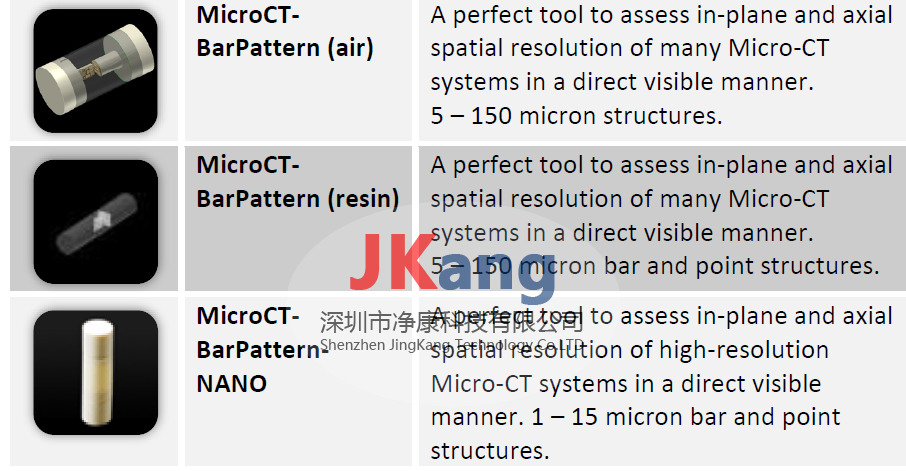

作為我們流行的MicroCT-BarPattern-Phantom的進一步發展，我們現在推出BarPattern-NANO！

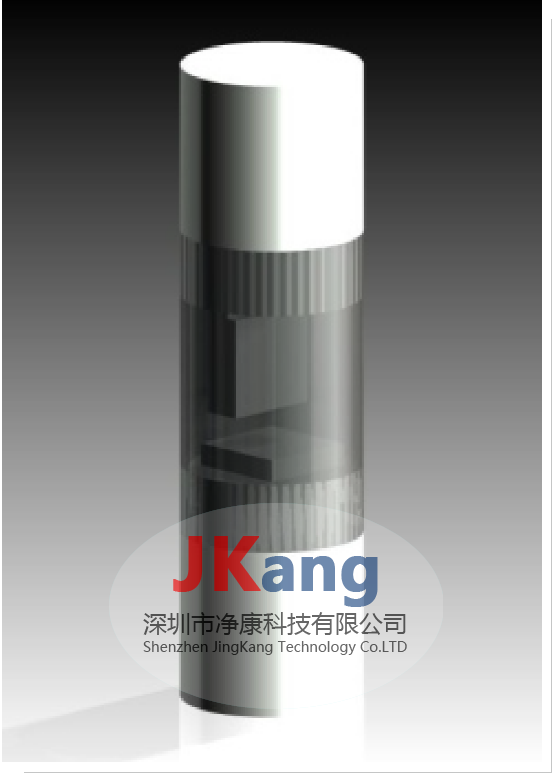

QRM QRM-MicroBar測試卡，QRM-MicroBar測試模體,Micro-CT高分辨率測試卡易于使用的幻像提供了兩個硅芯片，它們垂直對齊并放置在堅固的塑料支架上。
兩種3 x 3mm²的芯片都具有數個線和點圖案，分別代表線和點的寬度為1至10 µm。

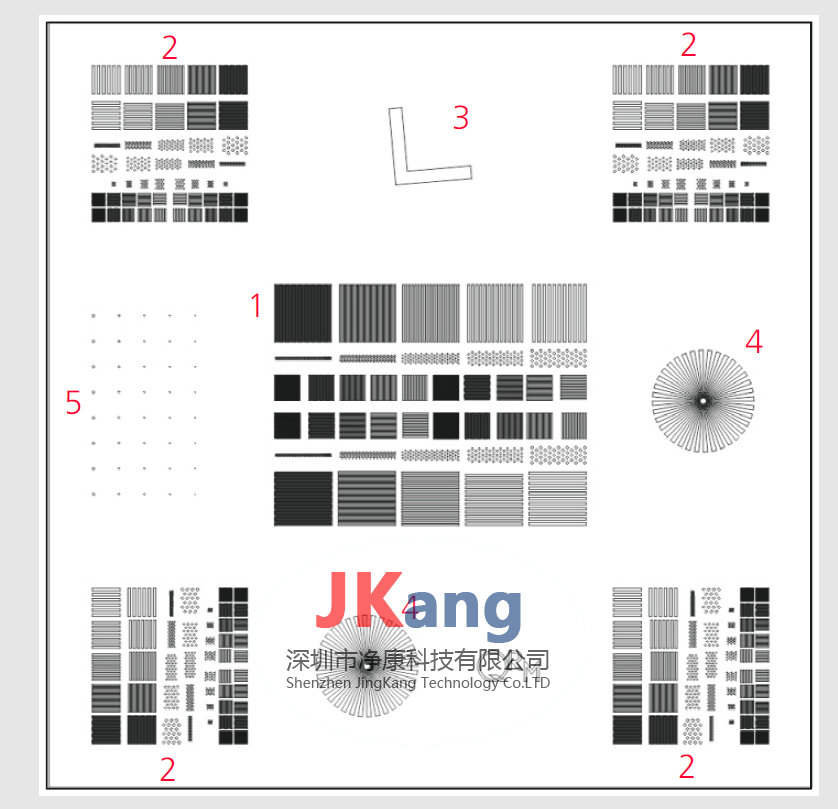

此外，在芯片上還放置了鋸齒狀邊緣（L）和西門子星（放射狀星）。

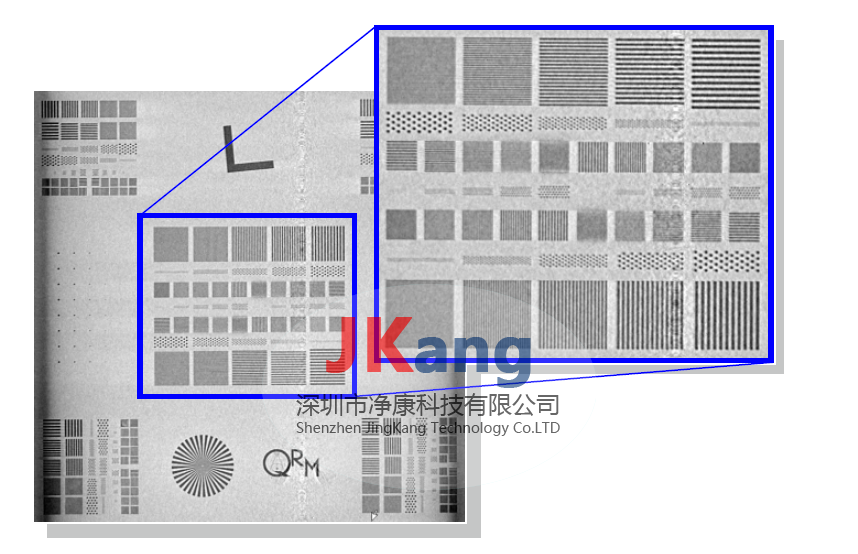

芯片上的不同結構以這種方式布置在芯片上，從而可以通過一次測量在圖像/芯片的中心以及外圍區域中確定空間分辨率。

芯片上的線型和點型：3 x 3mm²
結構的深度在5和15 µm之間變化。

QRM QRM-MicroBar測試卡，QRM-MicroBar測試模體,Micro-CT高分辨率測試卡技術指標
基礎材料：    固體塑料（切屑放在空氣中的支撐件上-壁厚> 0.3 mm）
直徑幻影：    5.2毫米
高度：    19毫米
硅芯片的措施：    3 x 3 x 0.66毫米
芯片上的結構（分辨率）：    分別為1至10 µm。500至50 LP / mm
芯片材質：    硅
圖案對比    硅/空氣













As a further development of our popular MicroCT-BarPattern-Phantom we now present the BarPattern-NANO!

The easy and convenient to use phantom provides two silicon chips, perpendicularly aligned and placed on a solid plastic support.
Both 3 x 3 mm² chips exhibit several line and point pattern representing lines and points of 1 to 10 µm width.

In addition a slented edge (L) and a Siemens-star (actinomorphic star) are also placed on the chip.
The different structures on the chip are arranged in such a way over the chip, that spatial resolution can be determined in the center as well as in the peripheral regions of the image/chip with a single measurement.

Line- and Pointpattern on the chip: 3 x 3 mm²
The depth of the structures varies within 5 and 15 µm.

Specifications
Base material:    solid plastic (chips placed on support in air -> 0.3 mm wall thickness)
Diameter Phantom:    5.2 mm
Height:    19 mm
measures of silicon chip:    3 x 3 x 0.66 mm
structures on the chip (resolution):    1 to 10 µm, resp. 500 to 50 LP/mm
Material of chip:    silicon
Contrast of pattern    silicon / air
